Артикул: 1SBN020114R1000

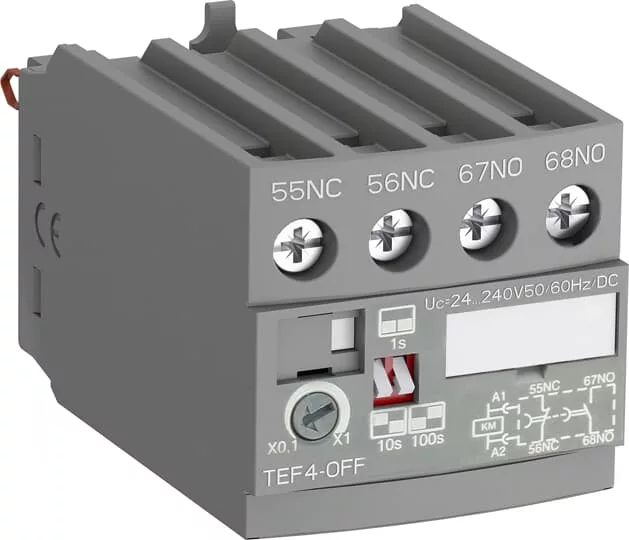

TEF4-OFF
В наявності
₴ 3 373,77
Фронтальні електронні таймери TEF4 використовуються для реалізації функції синхронізації і доступні у версіях ON-затримки та OFF-затримки. Компактне рішення в шафі порівняно з окремими таймерами Електронні таймери TEF4 встановлені спереду і заблоковані на контакторах автофокусування або контакторах NF. Механічний індикатор дозволяє показати стан контактора.Безпечна і знижена вартість електропроводки. Електронні таймери TEF4 забезпечуються прямим вставним паралельним підключенням до клем котушки А1 – А2 контактора або реле контактора. Варистор вбудований в таймер, щоб запропонувати вбудований захист від стрибків напруги в котушці контактора. Доступний для широкого діапазону напруги управління 24… 240 В AC/DCTEF4-ON або TEF4-OFF дозволяють відкладати функції до 100 с в 3 різних часових діапазонах, незалежно від системи управління. Діапазони затримки часу вибираються перемикачем, а затримку часу можна регулювати за допомогою поворотного перемикача. Функція ГРМ включається закриттям або відкриттям пристрою, на якому встановлений таймер. Версія OFF-day працює без додаткового управління.
Характеристики
Customs Tariff Number
85389091
Brand
ABB France LP Division Control
Minimum Order Quantity
1 штука
Product Net Weight
0,065 кг
Package Level 1 Units
коробка 1 штука
Package Level 1 Depth / Length
56 мм
Package Level 1 Height
51 мм
Package Level 1 Width
82 мм
Package Level 1 Gross Weight
0,065 кг
Package Level 2 Units
коробка 80 шт
Package Level 2 Depth / Length
319 мм
Package Level 2 Height
200 мм
Package Level 2 Width
254 мм
Package Level 2 Gross Weight
5,2 кг
Declaration of Conformity - CE
1 СБД 250008У1000
RoHS Information
1 СБД 250008У1000
RoHS Status
В соответствии с директивой ЕС 2011/65/EU
ETIM 7
EC002060 - блок таймера
ETIM 8
EC002060 - блок таймера
WEEE Category
5. Небольшое оборудование (без внешнего размера более 50 см)
Degree of Protection
в соответствии с МЭК 60529, МЭК 60947-1, EN 60529 Вспомогательные клеммы IP40
Instructions and Manuals
1 СБК 101026 М 6801
Product Net Width
43 мм
Product Net Height
41,6 мм
Product Net Depth / Length
67,7 мм
Rated Frequency (f)
Вспомогательная цепь 50/60 Гц
Rated Insulation Voltage (Ui)
в соответствии с МЭК 60947-5-1 и VDE 0110 (гр. C) 400 В/акк. до UL/CSA 300 В
Tightening Torque
Вспомогательный контур 1,2 Н·м
Suitable For
АФ09/АФ12/АФ16/АФ26/АФ30/АФ40/АФ52/АФ65/АФ80/АФ96/АФ09/АФК09/АФК16/АФК16/АФК26/АФК30/АФЦ30/АФЦ38/НФ/НФК
Tightening Torque UL/CSA
Вспомогательная цепь 11 IA
Ambient Air Temperature
Рядом с контактором для хранения -40... +80 °C/Рядом с контактором для работы на свободном воздухе -25... +70 °C
CB Certificate
CB_CN46281
CQC Certificate
CQC2010303572179
Environmental Information
1 СБД 250192Е 1000
UL Certificate
УЛ_20120717_Е252354
Package Level 1 EAN
3471523130654
Object Classification Code
К
ETIM 6
EC002060 - блок таймера
UNSPSC
39121500
E-Number (Finland)
3706000
E-Number (Sweden)
3210257
Product Name
Электронный таймер
Terminal Type
Винтовые зажимы
CCC Certificate
CCC_2010303572179
UL Listing Card
УЛ_Е252354
Mounting Position
Монтажные положения 1, 1 +/- 30°, 2, 3, 4, 5
Country of Origin
Китай (CN)
Selling Unit of Measure
кусок
WEEE B2C / B2B
Бизнес для бизнеса
CN8
8538 90 91
Timer Relay Type
Задержка выключения
