Артикул: 1SDA064687R1
E2N1600PR123/DCIn=1600A4pWMP
В наявності
₴ 1 380 860,01

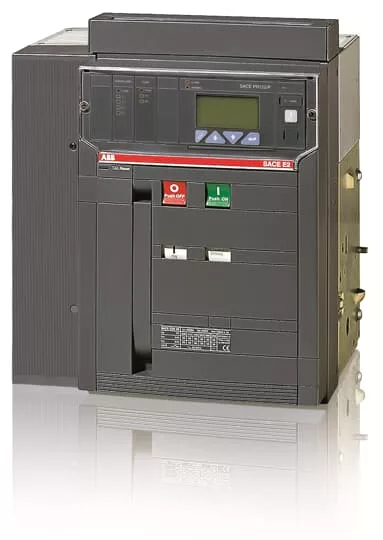

РУХОМА ЧАСТИНА SACE EMAX ДЛЯ АВТОМАТИЧНОГО ВИМИКАЧА E2N 1600A ЧОТИРИПОЛЮСНИЙ НАДСТРУМОВИЙ ВИПУСК PR123/DC R1600 ОСНАЩЕНИЙ: 4 ДОПОМІЖНИМ КОНТАКТОМ І C.BREAKER У ПОЛОЖЕННІ ВІДКРИТОГО ЗАКРИТОГО
Характеристики
EAN
8015644675806/8015644609139
Brand
ABB S.p.A. Electrification
Customs Tariff Number
85362090
Minimum Order Quantity
1 штука
Product Net Weight
61 кг
Package Level 1 Units
1 штука
Package Level 1 Depth / Length
615 мм
Package Level 1 Height
600 мм
Package Level 1 Width
515 мм
Declaration of Conformity - CE
1 СДЛ 000165R0014
ETIM 7
EC000228 - силовой автоматический выключатель для защиты трафо/генератора/установки
WEEE Category
5. Небольшое оборудование (без внешнего размера более 50 см)
Instructions and Manuals
1 СДХ 000635R0002
Product Net Width
414 мм
Product Net Height
461 мм
Product Net Depth / Length
396,5 мм
Rated Operational Voltage
1000 В ПОСТОЯННОГО ТОКА
Rated Operational Current (Ie)
1600 А
Rated Insulation Voltage (Ui)
1000 В
Number of Poles
4
Power Loss
323 ВТ
Standards
ЛЕД
Package Level 1 EAN
8015644609139
ETIM 4
EC000228 - силовой автоматический выключатель для трафо/генератора/установки prot.
ETIM 5
EC000228 - силовой автоматический выключатель для трафо/генератора/установки prot.
ETIM 6
EC000228 - силовой автоматический выключатель для трафо/генератора/установки prot.
Current Type
ПОСТОЯННОГО ТОКА
Electrical Durability
Ue = 1000 В, цикл 10000
Mechanical Durability
25000 циклов/60 циклов в час
Product Main Type
SACE Эмакс
Product Name
Воздушный автоматический выключатель
Product Type
Воздушный автоматический выключатель
Rated Current (In)
1600 А
Rated Voltage (Ur)
1000 В
Release
ПР123/ПОСТОЯННЫЙ ТОК
Release Type
ЭЛЬ
Sub-type
E2
Terminal Connection Type
Выдвижные автоматические выключатели/передние удлиненные
Version
Ш
Відгуки
Опис
