SKU: 1SDA100346R1

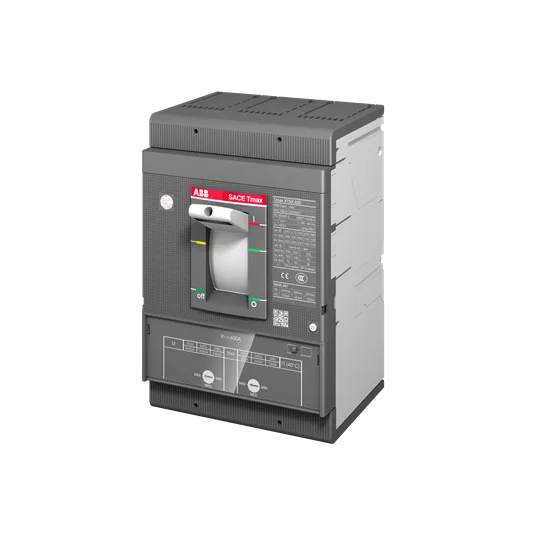

XT5N 630 TMA 500-5000 3p F F
In stock
₴ 68 142,36
C.BREAKER TMAX XT5N 630 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMA R 500 I3=2500…5000
Characteristics
EAN
8056221004237
Brand
ABB S.p.A. Electrification, ABB S.p.A. Electrification
Customs Tariff Number
85362090
Minimum Order Quantity
1 piece
Product Net Weight
4.775 kg
Package Level 1 Units
1 piece
Package Level 1 Depth / Length
285 mm
Package Level 1 Height
245 mm
Package Level 1 Width
250 mm
Package Level 1 Gross Weight
5.263 kg
Declaration of Conformity - CE
9AKK107680A2824
RoHS Information
LB-DT 17-21D
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
ETIM 7
EC000228 - Power circuit-breaker for trafo/generator/installation protection
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Instructions and Manuals
1SDH002011A1001
Product Net Width
140 mm
Product Net Height
205 mm
Product Net Depth / Length
103.5 mm
Setting Range
350…500 A
Rated Operational Voltage
690 V AC/750 V DC
Rated Insulation Voltage (Ui)
1000 V
Number of Poles
3
Power Loss
33.5 W
Standards
IEC 60947
Environmental Information
1SDL000190R0004
Package Level 1 EAN
8056221004237
Object Classification Code
Q
Current Type
AC/DC
Electrical Durability
120 cycles per hour/5000 cycle
Mechanical Durability
240 cycles per hour/20000 cycle
Order Multiple
1 piece
Product Main Type
SACE Tmax XT
Product Name
Moulded Case Circuit Breaker
Product Type
CB
Rated Current (In)
500 A
Release
TMA
Release Type
TM
Sub-type
XT5
Terminal Connection Type
Fixed Circuit-Breakers
Version
F
REACH Declaration
LB-DT 18-21D
Reviews
Description
Catalogue
- SACE Tmax XT IEC Low voltage molded case circuit-breakers
- SACE Tmax XT IEC TECHNICAL CHARACTERISTICS Low voltage molded case circuit-breakers
- SACE Tmax XT UL/CSA Low voltage molded case circuit-breakers UL489 and CSA CS22.2 Standards
- SACE Tmax XT UL/CSA TECHNICAL CHARACTERISTICS Low voltage molded case circuit-breakers for UL489 and CSA CS22.2 Standards
Certificate
- CQC Certificate, Modular Residual Current Device, RC Sel XT5, Made in China
- CQC Certificate, MCCB, XT5N, XT5S, XT5H, XT5L, XT5V, XT5X, Made in China
- CQC Certificate, Switch-Disconnector, XT5D 400, XT5D 630, Made in China
- CQC Certificate, Switch-Disconnector, XT5D, XT5N-D, XT5S-D, XT5H-D, XT5L-D, XT5V-D, Made in Italy
- CQC Certificate, MCCB, XT5N, XT5S, XT5H, XT5L, XT5V, XT5X, Made in Italy
Circuit diagram
- Main-Gen open transition with safety auxiliary voltage supply for CBs circuits
- Main-Tie-Main closed transition with safety auxiliary voltage supply for CBs circuits
- Circuit diagram for XT5, XT6
Declaration of conformity
- CCC Declaration of Conformity, Modular Residual Current Device, RC Sel XT5, Made in China
- CCC Declaration of Conformity, Switch Disconnector, XT5D, Made in Italy
- CCC Declaration of Conformity, Switch-Disconnector, XT5D 400, XT5D 630, Made in China
- CCC Declaration of Conformity, MCCB, XT5N, XT5S, XT5H, XT5L, XT5V, XT5X, Made in Italy
- CCC Declaration of Conformity, MCCB, XT5N, XT5S, XT5H, XT5L, XT5V, XT5X, Made in China
- EC Declaration of Conformity Tmax XT5
Drawing
- XT5 3p Fixed HTC bottom
- XT5 3p Fixed HTC top
- XT5 3p P-W 400A HR bottom (IEC)
- XT5 3p P-W 400A HR top (IEC)
- XT5 3p P-W 400A VR bottom (IEC)
- XT5 3p P-W 400A VR top (IEC)
- XT5 4p P-W 400A HR bottom (IEC)
- XT5 4p P-W 400A HR top (IEC)
- XT5 4p P-W 400A VR bottom (UL)
- XT5 4p P-W 400A VR top (UL)
- XT5 3p 4p F-P Flange for FLD/RHD
- XT5 3p 4p F-P Flange for MOE/MOE-E
- XT5 3p 4p Flange for circuit-breaker
- XT5 3p 4p W Flange for FLD/RHD
- XT5 3p 4p W Flange for MOE/MOE-E
- XT5 4p F-P Flange for residual current RC Sel
- XT5 4p W Flange for residual current RC Sel
- XT5 3p P-W 400A Adapter bottom
- XT5 3p P-W 400A Adapter top
- XT5 3p P-W 630A Adapter bottom
- XT5 3p P-W 630A Adapter top
- XT5 4p P-W 400A Adapter bottom
- XT5 4p P-W 400A Adapter top
- XT5 4p P-W 630A Adapter bottom
- XT5 4p P-W 630A Adapter top
- XT5 III-IV with rear mechanical interlock (MIR) horizontal
- XT5 III-IV with rear mechanical interlock (MIR-V) vertical
- XT5 III-IV fixed version 400A front terminals F with MOE
- XT5 III-IV fixed version front terminals F with FLD
- XT5 III-IV plug-in version 400A extended front terminals EF with FLD
- XT5 III-IV plug-in version 400A extended front terminals EF with MOE
- XT5 III-IV plug-in version 400A extended front terminals EF with direct rotary handle (RHD)
- XT5 III-IV plug-in version 400A extended front terminals EF with lateral RH rotary handle (RHS)
- XT5 III-IV plug-in version 400A extended front terminals EF with transmitted rotary handle (RHE)
- XT5 III-IV plug-in version 630A extended front terminals EF with FLD
- XT5 III-IV plug-in version 630A extended front terminals EF with MOE
- XT5 III-IV plug-in version 630A extended front terminals EF with direct rotary handle (RHD)
- XT5 III-IV plug-in version 630A extended front terminals EF with lateral RH rotary handle (RHS)
- XT5 III-IV plug-in version 630A extended front terminals EF with transmitted rotary handle (RHE)
- XT5 III-IV withdrawable version 400A extended front terminals EF with MOE
- XT5 III-IV withdrawable version 400A extended front terminals EF with direct rotary handle (RHD)
- XT5 III-IV withdrawable version 400A extended front terminals EF with lateral RH rotary handle (RHS)
- XT5 III-IV withdrawable version 400A extended front terminals EF with transmitted rotary handle (RHE)
- XT5 III-IV withdrawable version 400A horizontal rear terminals HR with FLD
- XT5 III-IV withdrawable version 400A vertical rear terminals VR with FLD
- XT5 III-IV withdrawable version 630A extended front terminals EF with FLD
- XT5 III-IV withdrawable version 630A extended front terminals EF with MOE
- XT5 III-IV withdrawable version 630A extended front terminals EF with direct rotary handle (RHD)
- XT5 III-IV withdrawable version 630A extended front terminals EF with lateral RH rotary handle (RHS)
- XT5 III-IV withdrawable version 630A extended front terminals EF with transmitted rotary handle (RHE)
- XT5 III-IV withdrawable version 630A horizontal rear terminals HR with FLD
- XT5 III-IV withdrawable version 630A vertical rear terminals VR with FLD
- XT5 IV fixed version front terminals F with RC
- XT5 IV plug-in version 400A extended front terminals EF with residual current release (RC)
- XT5 IV plug-in version 630A extended front terminals EF with residual current release (RC)
- XT5 IV withdrawable version 400A extended front terminals EF with residual current release (RC) and FLD
- XT5 IV withdrawable version 630A extended front terminals EF with residual current release (RC) and FLD
- XT5 III-IV fixed version front terminals F with direct rotary handle (RHD)
- XT5 III-IV fixed version front terminals F with side rotary handle (RHS)
- XT5 III-IV fixed version front terminals F with transmitted rotary handle (RHE)
- XT5 III-IV plug-in version 400A extended front terminals EF
- XT5 III-IV plug-in version 400A horizontal rear terminals HR
- XT5 III-IV plug-in version 400A vertical rear terminals VR
- XT5 III-IV plug-in version 630A extended front terminals EF
- XT5 III-IV plug-in version 630A horizontal rear terminals HR
- XT5 III-IV plug-in version 630A vertical rear terminals VR
- XT5 III-IV withdrawable version 400A extended front terminals EF with FLD
- XT5 3p Fixed EF bottom
- XT5 3p Fixed EF top
- XT5 3p Fixed ES bottom
- XT5 3p Fixed ES top
- XT5 3p Fixed F top e bottom
- XT5 3p Fixed FCCuAl 2x240mmq bottom
- XT5 3p Fixed FCCuAl 2x240mmq top
- XT5 4p Fixed EF bottom
- XT5 4p Fixed EF top
- XT5 4p Fixed ES bottom
- XT5 4p Fixed ES top
- XT5 4p Fixed F top e bottom
- XT5 4p Fixed FCCuAl 2x240mmq bottom
- XT5 4p Fixed FCCuAl 2x240mmq top
- XT5 3p 4p Fixed RHE max
- XT5 3p 4p Fixed RHE min
- XT5 3p Fixed back shield
- XT5 4p Fixed HTC bottom
- XT5 4p Fixed HTC top
- XT5 4p Fixed LTC bottom
- XT5 4p Fixed LTC top
- XT5 4p Fixed R bottom
- XT5 4p Fixed R top
- XT5 4p Fixed back shield
- XT5 3p Fixed LTC bottom
- XT5 3p Fixed LTC top
- XT5 3p Fixed R bottom
- XT5 3p Fixed R top
- XT5 3p 4p Fixed FLD
- XT5 3p Plug-in 400A Circuit Breaker + Fixed Part
- XT5 3p Plug-in 630A Circuit Breaker + Fixed Part
- XT5 3p Withdrawable 400A Circuit Breaker + Fixed Part
- XT5 3p Withdrawable 630A Circuit Breaker + Fixed Part
- XT5 4p P-W 400A HR top (only UL)
- XT5 4p Plug-in 400A Circuit Breaker + Fixed Part
- XT5 4p Plug-in 630A Circuit Breaker + Fixed Part
- XT5 4p Withdrawable 400A Circuit Breaker + Fixed Part
- XT5 4p Withdrawable 630A Circuit Breaker + Fixed Part
- XT5 III-IV fixed version 400A with FCCuAl 1 x 240mm2 terminals (top) and 1 x 185mm2 terminals (bottom) with phase separators 25mm
- XT5 III-IV fixed version 630A with FCCuAl 2 x 240mm2 terminals for cables with phase separators 100mm (top) and high terminal cover (bottom)
- XT5 III-IV fixed version extended spread terminals ES with phase separators 100mm (top) and high terminal cover (bottom)
- XT5 III-IV fixed version front terminals F with phase separators 25mm
- XT5 3p 4p Fixed Cable rack LH
- XT5 3p 4p Fixed Cable rack RH
- XT5 3p 4p Fixed MOE
- XT5 3p 4p Front plate
- XT5 3p 4p P-W FLD
- XT5 3p 4p P-W MOE
- XT5 3p 4p P-W RHD
- XT5 3p 4p P-W RHE max
- XT5 3p 4p P-W RHE min
- XT5 3p Fixation screws
- XT5 3p Fixed Circuit Breaker
- XT5 3p Fixed PS 100mm bottom
- XT5 3p Fixed PS 100mm top
- XT5 3p Fixed PS 200mm bottom
- XT5 3p Fixed PS 200mm top
- XT5 3p Fixed PS 25mm bottom
- XT5 3p Fixed PS 25mm top
- XT5 3p Fixed RHD
- XT5 3p P-W 400A EF bottom
- XT5 3p P-W 400A EF top
- XT5 3p P-W 400A HR bottom (only UL)
- XT5 3p P-W 400A HR top (only UL)
- XT5 3p P-W 400A VR bottom (only UL)
- XT5 3p P-W 400A VR top (only UL)
- XT5 3p P-W 630A EF bottom
- XT5 3p P-W 630A EF top
- XT5 3p P-W 630A HR bottom
- XT5 3p P-W 630A HR top
- XT5 3p P-W 630A VR bottom
- XT5 3p P-W 630A VR top
- XT5 4p Fixation screws
- XT5 4p Fixed Circuit Breaker
- XT5 4p Fixed PS 100mm bottom
- XT5 4p Fixed PS 100mm top
- XT5 4p Fixed PS 200mm bottom
- XT5 4p Fixed PS 200mm top
- XT5 4p Fixed PS 25mm bottom
- XT5 4p Fixed PS 25mm top
- XT5 4p Fixed Residual Current
- XT5 4p P-W 400A EF bottom
- XT5 4p P-W 400A EF top
- XT5 4p P-W 400A HR bottom (only UL)
- XT5 4p P-W 400A VR bottom (IEC)
- XT5 4p P-W 400A VR top (IEC)
- XT5 4p P-W 630A EF bottom
- XT5 4p P-W 630A EF top
- XT5 4p P-W 630A HR bottom
- XT5 4p P-W 630A HR top
- XT5 4p P-W 630A VR bottom
- XT5 4p P-W 630A VR top
- XT5 III-IV fixed version adjustable rear terminals R with low terminal covers LTC
- XT5 III-IV fixed version extended front terminals EF with phase separators 100mm (top) and high terminal cover (bottom)
Environmental product declaration
Manual
- Toggle Extention XT5 - XT6
- EKIP COM MODBUS RTU - EKIP COM PROFIBUS DP - EKIP COM DEVICENET
- External neutral with XT5 Ekip Touch/Hi-Touch
- External neutral with XT5-XT6 Ekip Dip
- FC CuAl - Front terminals for copper - aluminum cables 4/0AWG...500 kcmil XT5
- FC CuAl - Front terminals for copper-aluminum cables - FCCuAl 2x500...750kcmil XT5
- FC CuAl - Front terminals for copper-aluminum cables 2x2/0AWG...500kcmil XT5
- FC CuAl - Front terminals for copper-aluminum cables 4AWG...350 kcmil XT5
- Installation instructions XT5 IEC 800V DC
- LTC - Low Insulating terminal covers XT5
- Release assembly XT5-XT6
- Transparent cover
- R - Adjustable rear terminals XT5 fixed
- Spare part - Lever group
- Ekip Signalling 1K - XT5
- Installation instructions XT5 IEC
- Installation instructions XT5 UL
- Sealable screws Tmax XT
- Spare part - Battery group for Trip unit
- Spare part - Busbars fixing screws
- Spare part - Circuit Breaker front cover group
- Spare part - Circuit breaker fixing screws
- Spare part - Extended lever
- Spare part - Front cover fixing screws
- Spare part - Transparent cover for TM Trip Unit / Ekip Trip Unit Dip
- Spare part - Trip unit fixing screws
- YO - Right side - wired opening release, for XT5 - XT6 withdrawable circuit-breakers.
- YO - wired and non-wired opening release for XT5 - XT6 fixed/plug-in circuit-breakers.
- FC CuAl - Front terminals for copper - aluminum cables 1x185...300 mm2 kcmil XT5
- Flange handle XT5 - Three poles
- EF - Extended front terminals XT5 fixed
- HTC - XT5 - XT6 High Insulating terminal covers
- HTC-ES - High Insulating terminal covers for extended front spread terminals XT5
- Communication System Interface for Ekip Touch trip unit on circuit breaker Tmax XT7-XT5-XT4-XT2 + Ekip Com modules
- EKIP COM MODBUS TCP - EKIP COM PROFINET - EKIP COM ETHERNET/IP - EKIP LINK - EKIP COM IEC61850 - EKIP COM HUB
- Ekip CI - Contactor interface
- FC CuAl - Front terminals for copper-aluminum cables - FCCuAl 1x350...750kcmil XT5
- NFPA79 Handle XT1, XT2, XT3, XT4, XT5, XT6, T5
- Ekip Din Rail Cartridge - XT2 - XT4 - XT5
- AUX-C - Wired auxiliary contacts 400V XT5 (1Q+1SY)
- EF - Extended front terminals XT5 fixed
- ES - Front terminals splayed for fixed circuit- breaker/fixed part XT5
- FC CuAl - Two pieces kit front terminals for copper - aluminum cables 2x2/0AWG...500kcmil XT5
- PB - Phase barriers 100-200mm XT5-XT6
- KLC - Key lock Ronis 1228 XT5 - XT6
- HTC-BS - High terminal cover with back shield XT5
- HTC-BS - High terminal cover with back shield XT5
- HTC-BS-ES - Copriterminale alto con protezione posteriore per terminali anteriori prolungati divaricati XT5
- Rear connector XT2-XT4-XT5 plug-in circuit-breaker
- Conversion kit for xed part F-R (HR-VR) terminals XT5
- Conversion kit from fixed to mobile part of withdrawablen version - XT5
- KL - Key lock and padlock for fixed part or withdrawable version XT5 - XT6
- MIR - Mechanical interlock across two orizontal XT4-XT5 circuit breakers
- MIR - Mechanical interlock for XT5-XT6 circuit breakers
- MOL-S/D Key lock for open position for MOE XT5-XT6
- Modular residual current device RC Sel - XT5
- PB - Phase barriers for XT5
- PLL - Padlock device XT5 in open or open-close position.
- Transformation from RC Sel XT5 fixed differential to mobile part of plug-in/withdrawable version
- Transformation of a basic circuit-breaker into a moving part for a plug-in circuit-breaker - XT5
- AUE - Early marking auxiliary contact for rotary handle operating mechanism XT5-XT6
- AUP / AUP BOX - XT5-XT6 Auxiliary position contacts for xed part
- FLD - Front for locks XT5
- Fixed part adapter XT5
- HIGH TERMINAL-COVERS FOR FIXED PART OF A CIRCUIT BREAKER WITH RESIDUAL CURRENT RC XT5
- RHD - Rotary handle operating mechanism direct Tmax XT5
- RHE / RHE HD - Rotary handle operating mechanism door mounted XT5
- Fixed part for plug-in circuit-breakers XT5
- Fixed part for withdrawable circuit-breakers - XT5
- MOE / MOE-E Stored energy operating mechanism XT5
- RHL - Key lock for XT5-XT6-XT7 front/rotary handle (open position)
- Flange for switchboard compartment door XT5-XT6-XT7 / F-P-W
- RHL - Key lock for XT5-XT6-XT7 front/rotary handle (open-close position)
- IP54 for rotary handle operating mechanism XT5-XT6-XT7 door mounted.
- RHE - Rod XT5-XT6-XT7 / Telescopic Rod XT2-XT4-XT5-XT6-XT7
- F - Front terminals XT5 Fixed
- EKIP T&P test and programming unit XT2-XT4-XT5
- Ekip Com HUB, Ekip COM Modbus TCP, Ekip COM Profinet, Ekip COM Ethernet IP, Ekip COM IEC61850, Ekip COM Link, Ekip COM Modbus TCP/IP Stand-Alone
- Ekip Com Modbus RTU, Ekip Comd Modbus RTU Stand-Alone
- Key lock in open position for special devices (STI, Kirk, Ronis 1104) - XT5 - XT6
- Micro I/O Module - XT5
- Terminal insulating plate for XT5 fixed
- YU - Wired undervoltage release for XT5 - XT6 withdrawable circuit-breakers.
- YU - wired and non-wired undervoltage release for XT5 - XT6 fixed/plug-in circuit-breakers.
- Zone selectivity cable - XT5
- AUX - Not wired auxiliary contacts XT5-XT6 fixed
- AUX-C - W - XT5 - XT6 wired auxiliary contacts 250V-24V (1Q+1SY; 2Q+1SY; 3Q+1SY; S51)
- AUX-C - Wired auxiliary contacts 1Q+1SY left - XT5
- AUX-C - Wired auxiliary contacts 250V-24V XT5-XT6 fixed (1Q+1SY; 2Q+1SY; 3Q+1SY; S51)
- AUX-C - Wired auxiliary contacts 400V XT5 (2Q)
- AUX-C - XT5 - XT6 wired auxiliary contacts 250V-24V (S52)
- Cable rack - XT5-XT6
- Connection 24Vdc and internal bus - XT5
- Ekip Maintenance Module MM - XT5
- Operation and maintenance manual for Ekip Touch Trip Units
- PB - Phase barriers 25mm XT5
- Rating Plug - XT5
- UVD - Electronic time lag device for undervoltage coils (YU) XT5 - XT6
- YO XT5-XT6 W cable kit for coil assembly on left
- YU XT5-XT6 W cable kit for coil assembly on left
Movie
- Tmax XT CLOUD CONNECTIVITY
- Tmax XT EASE OF USE
- Tmax XT PERFORMANCE AND PROTECTION
- Tmax XT SAFETY AND RELIABILITY
- Tmax XT SHORT VIDEO
- Tmax XT SHORT VIDEO TEASER B
Reference case study
Reviews
There are no reviews yet.
There are no reviews yet.
