SKU: 1SDA068204R1
XT4 W FP 3p EF
In stock
₴ 17 408,24

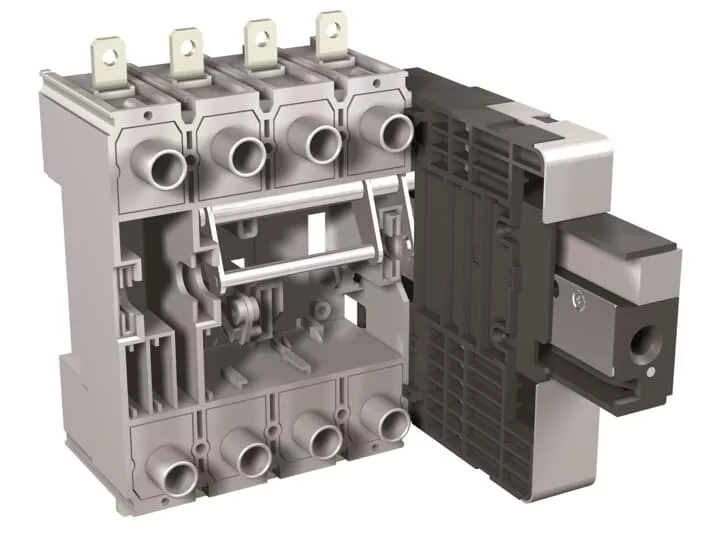

FIXED PART WITHDRAWABLE FOR C.BREAKER TMAX THREE-POLE WITH EXTENDED FRONT TERMINALS XT4
Characteristics
EAN
8015644021009
Brand
ABB S.p.A. Electrification, ABB S.p.A. Electrification
Customs Tariff Number
85389099
Minimum Order Quantity
1 piece
Product Net Weight
1.5 kg
Package Level 1 Units
1 piece
Package Level 1 Depth / Length
260 mm
Package Level 1 Height
220 mm
Package Level 1 Width
195 mm
Package Level 1 Gross Weight
1.65 kg
RoHS Information
LB-DT 17-21D
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
ETIM 7
EC002043 - Chassis part power circuit breaker
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Instructions and Manuals
1SDH000722R0005
Product Net Width
195 mm
Product Net Height
220 mm
Product Net Depth / Length
260 mm
Rated Operational Voltage
690 V AC/500 V DC
Rated Frequency (f)
50 / 60 Hz
Rated Insulation Voltage (Ui)
1000 V
Number of Poles
3
Suitable For
XT4
Standards
IEC 60947
Environmental Information
1SDL000190R0004
Package Level 1 EAN
8015644021009
Object Classification Code
Q
ETIM 6
EC002043 - Chassis part power circuit breaker
UNSPSC
39120000
E-Number (Finland)
3641062
Order Multiple
1 piece
Product Main Type
Accessories for Tmax XT
Product Name
Accessory
Product Type
FP
Sub-type
XT4
Terminal Connection Type
Withdrawable Circuit-Breakers/Front Extended
Version
W
REACH Declaration
LB-DT 18-21D
Configuration Type
Loose or configurable
