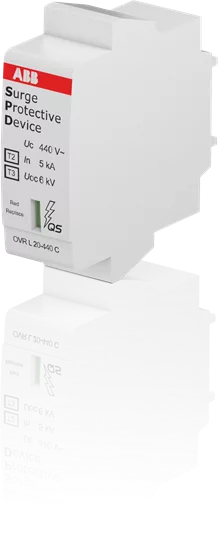

OVR T2-T3 20-440 C QS

Customs Tariff Number

85363090

Brand

ABB Stotz-Kontakt GmbH, ABB Stotz-Kontakt GmbH

Minimum Order Quantity

1 piece

Product Net Weight

0.12 kg

Package Level 1 Units

box 1 piece

Package Level 1 Depth / Length

25 mm

Package Level 1 Height

82 mm

Package Level 1 Width

117 mm

Package Level 1 Gross Weight

0.14 kg

Mounting Type

On basic element

Declaration of Conformity - CE

9AKK107992A0892

ETIM 7

EC000941 - Surge protection device for power supply systems

ETIM 8

EC000941 - Surge protection device for power supply systems

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm)

Degree of Protection

IP20

Instructions and Manuals

2CTC432097M1701

Product Net Width

17.6 mm

Product Net Height

57 mm

Product Net Depth / Length

55.6 mm

Number of Poles

1

Number of Protected Poles

1

Suitable For

To protect the systems against the transient overvoltage (lightning)

Standards

IEC 61643-11 / EN 61643-11

CB Certificate

2CTC432024G1701

CQC Certificate

9AKK107680A1974

Package Level 1 EAN

3660308520913

Object Classification Code

141EEC

ETIM 6

EC000941 - Surge protection device for power supply systems

Product Name

Surge Protective Device

Product Type

QS

Rated Voltage (Ur)

400 V AC

Version

Plug-in

Country of Origin

Bulgaria (BG)

Selling Unit of Measure

piece

WEEE B2C / B2B

Business To Business

CN8

85363090

Fuse Size

Other

Options Provided

Replacement Cartridge

Voltage Rating DC

560 V

Voltage Protection Level ( Up)

1.4 kV/(L-N) 1.4 kV/(N-PE) 1.4 kV

Discharge Current

Nominal 5 kA/Maximum 2 kA/Nominal (8 / 20 µs) 5 kA/I (max, 8 / 20 µs) 20 kA

Impulse Current

I (imp, 10 / 350 µs) 2 kA

Short Circuit Withstand Icc

100 kA

Arrester Class

II/III

Number of Conductors

1

Transmission Standard

Optic

Status Indicator

Yes
