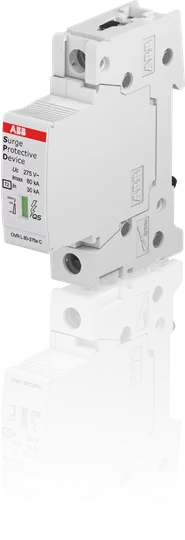

OVR T2 80-275s P QS

Customs Tariff Number

85363090

Brand

ABB Stotz-Kontakt GmbH, ABB Stotz-Kontakt GmbH

Minimum Order Quantity

1 piece

Product Net Weight

0.15 kg

Package Level 1 Units

box 1 piece

Package Level 1 Depth / Length

25 mm

Package Level 1 Height

82 mm

Package Level 1 Width

117 mm

Package Level 1 Gross Weight

165 g

Mounting Type

DIN rail (top hat rail) 35 mm

Declaration of Conformity - CE

9AKK107992A0892

ETIM 7

EC000941 - Surge protection device for power supply systems

ETIM 8

EC000941 - Surge protection device for power supply systems

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm)

Degree of Protection

IP20

Instructions and Manuals

2CTC432106M1701

Product Net Width

17.8 mm

Product Net Height

88 mm

Product Net Depth / Length

76.7 mm

Number of Poles

1

Number of Protected Poles

1

Power Loss

28 mW

Suitable For

To protect the systems against the transient overvoltage (lightning)

Standards

IEC 61643-11 / EN 61643-11

CQC Certificate

9AKK107680A1974

Package Level 1 EAN

3660308525475

Object Classification Code

141DCC

ETIM 6

EC000941 - Surge protection device for power supply systems

Product Name

Surge Protective Device

Product Type

QS

Rated Voltage (Ur)

230 V AC

Version

Plug-in

Country of Origin

Bulgaria (BG)

Selling Unit of Measure

piece

WEEE B2C / B2B

Business To Business

CN8

85363090

Mechanical Drawings

2CTC800015F1500.pdf/2CTC800015F1501.dxf/2CTC800015F1502.stp/2CTC800015F1503.igs

Fuse Size

1 modular spacing

Options Provided

Industry, commercial building

Voltage Rating DC

350 V

Voltage Protection Level ( Up)

1.4 kV/(L-N) 1.4 kV/(N-PE) 1.4 kV/(L-PE) 1.4 kV

Discharge Current

Nominal 20 kA/Maximum 8 kA/Nominal (8 / 20 µs) 20 kA/I (max, 8 / 20 µs) 80 kA

Impulse Current

I (imp, 10 / 350 µs) 6.25 kA

Short Circuit Withstand Icc

100 kA

Arrester Class

II

Number of Conductors

1

Transmission Standard

Optic

Status Indicator

Yes

Declaration

2CTC432056G1701
