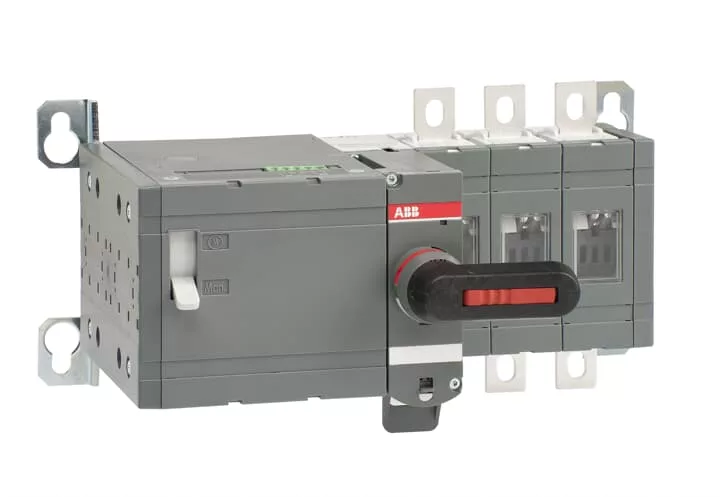

OTM160E3M230C

Customs Tariff Number

85365080

Brand

ABB Oy, Smart Power, ABB Oy, Smart Power

Minimum Order Quantity

1 piece

Product Net Weight

5.1 kg

Package Level 1 Units

box 1 piece

Package Level 1 Depth / Length

395 mm

Package Level 1 Height

215 mm

Package Level 1 Width

215 mm

Package Level 1 Gross Weight

6 kg

Mounting Type

Base mounting

Declaration of Conformity - CE

1SCC301197D0202

RoHS Information

1SCC303036D0202

RoHS Status

Following EU Directive 2011/65/EU

ETIM 7

EC000216 - Switch disconnector

ETIM 8

EC000216 - Switch disconnector

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm)

Degree of Protection

Front IP00

Instructions and Manuals

1SCC303006M0205

Product Net Width

296 mm

Product Net Height

150 mm

Product Net Depth / Length

198 mm

Rated Operational Voltage

Main Circuit 1000 V

Rated Insulation Voltage (Ui)

acc. to IEC/EN 60664-1 1000 V

Number of Poles

3

Pollution Degree

3

Tightening Torque

acc. IEC 60947-1 15…22N·m

Power Loss

at Rated Operating Conditions per Pole 3.2 W

Standards

IEC 60947-3

Package Level 1 EAN

6417019476711

Object Classification Code

Q

ETIM 5

EC000216 - Switch disconnector

ETIM 6

EC000216 - Switch disconnector

UNSPSC

39122233

E-Number (Finland)

3638140

Mechanical Durability

20000

Terminal Type

Screw Terminals

Country of Origin

Finland (FI)

Special Functions

No

Handle Color

Black

Handle Type

Direct mounted handle

Position of Line Terminals

Top In - Bottom Out

Lock Type

Yes

Switches Operating Mechanism

Mechanism at the End of the Switch

Distance Between Phases

Standard

Operating Mode

Front operated

Motor Operational Voltage

220 ... 240 V AC
