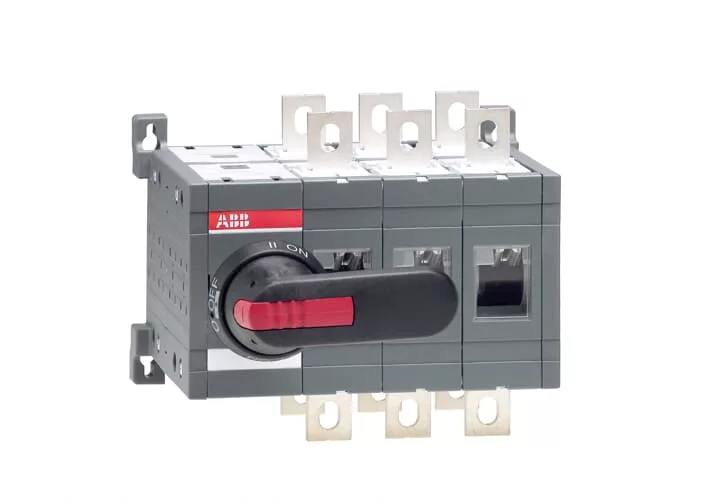

OT400E03CP

Customs Tariff Number

85365080

Brand

ABB Oy, Smart Power, ABB Oy, Smart Power

Minimum Order Quantity

1 piece

Product Net Weight

6 kg

Package Level 1 Units

1 piece

Package Level 1 Depth / Length

270 mm

Package Level 1 Height

218 mm

Package Level 1 Width

240 mm

Package Level 1 Gross Weight

6.4 kg

Mounting Type

Base mounting

Declaration of Conformity - CE

1SCC303005D0202

RoHS Information

1SCC301149D0202

ETIM 7

EC000216 - Switch disconnector

ETIM 8

EC000216 - Switch disconnector

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm)

Degree of Protection

Front IP20

Instructions and Manuals

1SCC301041M0002

Product Net Width

221 mm

Product Net Height

185 mm

Product Net Depth / Length

203 mm

Rated Operational Voltage

1000 V

Rated Insulation Voltage (Ui)

1000 V

Number of Poles

3

Pollution Degree

3

Tightening Torque

acc. IEC 60947-1 30 ... 44 N·m

Power Loss

10 W

Environmental Information

1SCC303050D0201

Package Level 1 EAN

6417019251950

Object Classification Code

Q

ETIM 5

EC000216 - Switch disconnector

ETIM 6

EC000216 - Switch disconnector

UNSPSC

39122214

E-Number (Finland)

3641506

Country of Origin

Finland (FI)

Handle Color

Black

Handle Type

Handle and shaft included

Position of Line Terminals

Top In - Bottom Out/Bottom In - Top Out

Switches Operating Mechanism

Mechanism at the End of the Switch/03 (Left Side)

Distance Between Phases

Standard

Operating Mode

Front operated

Terminal Width

25 mm

Transition Type

Open
