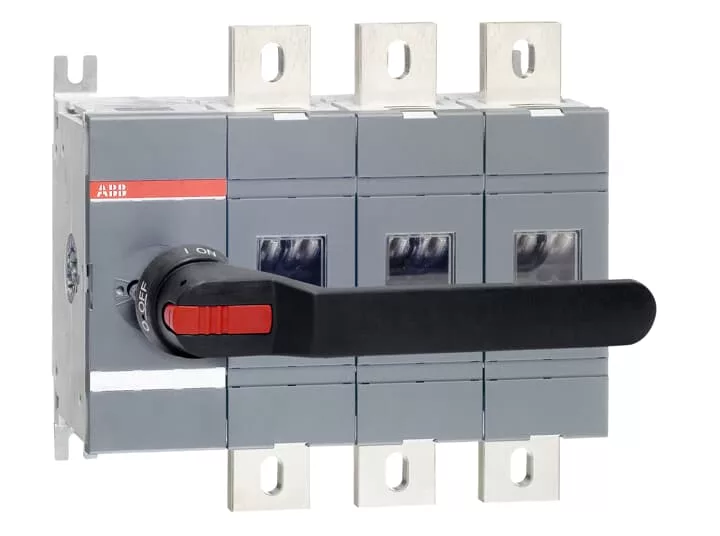

OT1000E03P

Customs Tariff Number

85365080

Brand

ABB Oy, Smart Power, ABB Oy, Smart Power

Minimum Order Quantity

1 piece

Product Net Weight

15.4 kg

Package Level 1 Units

box 1 piece

Package Level 1 Depth / Length

435 mm

Package Level 1 Height

170 mm

Package Level 1 Width

400 mm

Package Level 1 Gross Weight

16.9 kg

Mounting Type

Base mounting

Declaration of Conformity - CE

1SCC301155D2704

RoHS Information

1SCC301149D0203

RoHS Status

Following EU Directive 2011/65/EU

ETIM 7

EC000216 - Switch disconnector

ETIM 8

EC000216 - Switch disconnector

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm)

Degree of Protection

Front IP00

Instructions and Manuals

1SCC301047M0213

Product Net Width

334.5 mm

Product Net Height

306 mm

Product Net Depth / Length

167 mm

Rated Operational Voltage

Main Circuit 1000 V

Rated Insulation Voltage (Ui)

acc. to IEC/EN 60664-1 1000 V

Number of Poles

3

Pollution Degree

3

Tightening Torque

acc. IEC 60947-1 50…75 N·m

Power Loss

at Rated Operating Conditions per Pole 19 W

Standards

IEC 60947-3

DNV GL Certificate

1SCC301184D0203

Environmental Information

1SCC301149D0202

Package Level 1 EAN

6417019309309

Object Classification Code

Q

ETIM 5

EC000216 - Switch disconnector

ETIM 6

EC000216 - Switch disconnector

E-Number (Finland)

3661604

E-Number (Sweden)

3171234

Mechanical Durability

6000

Terminal Type

Lug terminals

Country of Origin

Finland (FI)

Special Functions

No

Mechanical Drawings

1SCC301492F0001/1SCC301491F0001/OT1250E03.igs

Handle Color

Black

Handle Type

Handle and shaft included

Position of Line Terminals

Top In - Bottom Out/Bottom In - Top Out

Lock Type

Yes

Switches Operating Mechanism

Mechanism at the End of the Switch/03 (Left Side)

Distance Between Phases

Standard

Operating Mode

Front operated

Terminal Width

50 mm
