SKU: 1SDA068659R1
EKIP DISPLAY x LSI-LSIG-M/LRIU XT2-XT4
In stock
₴ 12 570,16

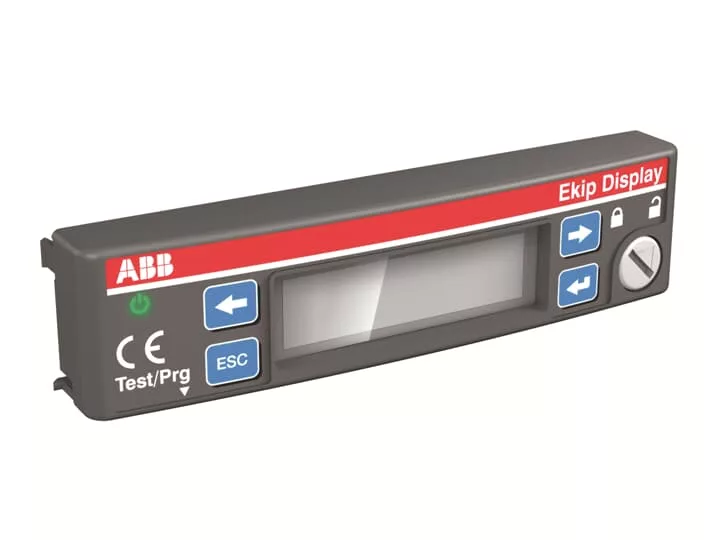

EKIP DISPLAY FRONT DISPLAY UNIT FOR EKIP LSI-LSIG-M/LRIU XT2-XT4
Characteristics
EAN
8015644021122
Brand
ABB S.p.A. Electrification, ABB S.p.A. Electrification
Customs Tariff Number
85389099
Minimum Order Quantity
1 piece
Product Net Weight
0.055 kg
Package Level 1 Units
1 piece
Package Level 1 Depth / Length
140 mm
Package Level 1 Height
60 mm
Package Level 1 Width
110 mm
Package Level 1 Gross Weight
0.058 kg
RoHS Information
LB-DT 17-21D
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
ETIM 7
EC002498 - Accessories for low-voltage switch technology
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Instructions and Manuals
1SDH000721R0621/1SDH000892R0002/1SDH000892R0001
Product Net Width
110 mm
Product Net Height
60 mm
Product Net Depth / Length
140 mm
Suitable For
XT2, XT3, XT4
Standards
IEC 60947-2
Package Level 1 EAN
8015644021122
Object Classification Code
Q
ETIM 6
EC002498 - Accessories for low-voltage switch technology
UNSPSC
39120000
E-Number (Sweden)
3182070
Order Multiple
1 piece
Product Main Type
Accessories for Tmax XT
Product Name
Accessory
Product Type
ACC
REACH Declaration
LB-DT 18-21D
Configuration Type
Loose or configurable
Suitable for Product Class
SACE Tmax XT
