SKU: 1SDA073907R1
E1.2 W FP Iu=1600 3p HR HR
In stock
₴ 76 705,12

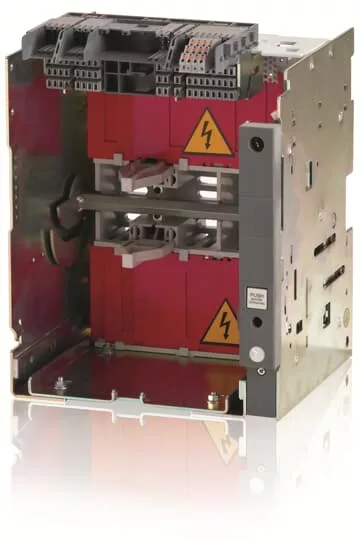

FIXED PART WITHDRAWABLE FOR C.BREAKER SACE EMAX2 E1.2 1600 THREE-POLE WITH REAR HORIZONTAL TERMINALS
Characteristics
EAN
8015644778408
Brand
ABB S.p.A. Electrification, ABB S.p.A. Electrification
Customs Tariff Number
85389099
Minimum Order Quantity
1 piece
Product Net Weight
20 kg
Package Level 1 Units
1 piece
Package Level 1 Depth / Length
373 mm
Package Level 1 Height
330 mm
Package Level 1 Width
320 mm
Package Level 1 Gross Weight
23 kg
Declaration of Conformity - CE
9AKK106713A5546
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
ETIM 7
EC002043 - Chassis part power circuit breaker
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Instructions and Manuals
1SDH000999R0820
Product Net Width
278 mm
Product Net Height
363.5 mm
Product Net Depth / Length
271 mm
Rated Operational Voltage
690 V AC
Rated Insulation Voltage (Ui)
AC 1000 V
Number of Poles
3
Standards
IEC
Environmental Information
Not Available
Package Level 1 EAN
8015644778408
Object Classification Code
Q
ETIM 4
EC000228 - Power circuit-breaker for trafo/generator/installation prot.
ETIM 5
EC000228 - Power circuit-breaker for trafo/generator/installation prot.
ETIM 6
EC002043 - Chassis part power circuit breaker
Current Type
AC
Product Main Type
SACE Emax 2
Product Name
Fixed Part
Product Type
Fixed Part
Rated Current (In)
1600 A
Rated Voltage (Ur)
690 V
Sub-type
E1.2
Terminal Connection Type
Rear flat Horizontal
Version
W FP
