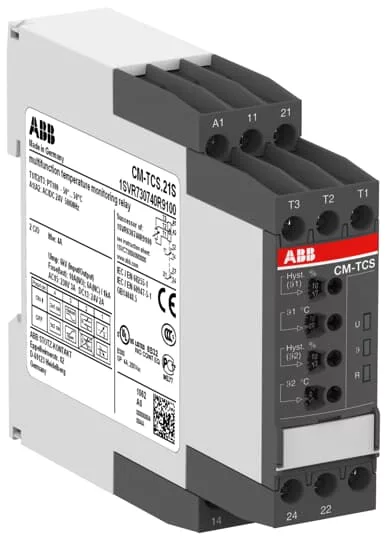

CM-TCS.21S

EAN

4016779852746

Brand

ABB Stotz-Kontakt GmbH, ABB Stotz-Kontakt GmbH

Customs Tariff Number

85364900

Minimum Order Quantity

1 piece

Product Net Weight

0.138 kg

Package Level 1 Units

box 1 piece

Package Level 1 Depth / Length

30 mm

Package Level 1 Height

109 mm

Package Level 1 Width

97 mm

Package Level 1 Gross Weight

0.163 kg

Declaration of Conformity - CE

1SVD981015-00

RoHS Information

1SVD981015-00

RoHS Status

Following EU Directive 2011/65/EU

ETIM 7

EC001446 - Temperature monitoring relay

Degree of Protection

Housing IP50/Terminals IP20

Instructions and Manuals

1SVC730560M0000

Product Net Width

22.5 mm

Product Net Height

85.6 mm

Product Net Depth / Length

103.7 mm

Rated Frequency (f)

Supply Circuit 50 Hz/Supply Circuit 60 Hz/Supply Circuit DC

Rated Insulation Voltage (Ui)

Measuring Circuit / Output Circuit 300 V/Output Circuit 1 / Output Circuit 2 300 V/Supply Circuit / Measuring Circuit 300 V/Supply Circuit / Output Circuit 300 V

Pollution Degree

3

Tightening Torque

0.6 ... 0.8 N·m

Wire Stripping Length

8 mm

Recommended Screw Driver

Pozidriv 1/4.5/0.8 x 4

Standards

CAN/CSA C22.2 No.14/EN 50581/IEC/EN 60255-27/IEC/EN 61000-6-2/IEC/EN 61000-6-3/UL 508

Contact Rating UL/CSA

B300

Tightening Torque UL/CSA

7.08 in·lb

Ambient Air Temperature

Operation -40 ... +60 °C/Storage -40 ... +85 °C

CQC Certificate

CQC2007010303243843

EAC Certificate

EAC_RU_C-DE.ME77.B.03424

Package Level 1 EAN

4016779852746

Object Classification Code

B

ETIM 4

EC001446 - Temperature monitoring relay

ETIM 5

EC001446 - Temperature monitoring relay

ETIM 6

EC001446 - Temperature monitoring relay

eClass

V11.0 : 27371810

E-Number (Finland)

2712328

E-Number (Sweden)

3860666

Electrical Durability

AC-12 100000 cycle

Mechanical Durability

30000000 cycle

Terminal Type

Screw Terminals

CCC Certificate

CCC_2018010303056014

Minimum Switching Capacity

24 V/10 mA

Mounting Position

Any

cULus Certificate

cULus508_20170922-E140448

Overvoltage Category

III

Function

Overtemperature monitoring/Undertemperature monitoring/Over- and undertemperature monitoring/1 sensor circuit/Short-circuit detection

Output

2 x 1 c/o or 1 x 2 c/o contacts, configurable

Connecting Capacity UL/CSA

Flexible 1x 18-14 AWG/Flexible 2x 18-16 AWG/Rigid 1x 20-12 AWG/Rigid 2x 20-14 AWG

Mounting on DIN Rail

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715/TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Measuring Range

-50... +50 °C

Sensor Type

PT100
