SKU: 1SVR730700R0200
CM-MSS.22S
In stock
₴ 4 876,01

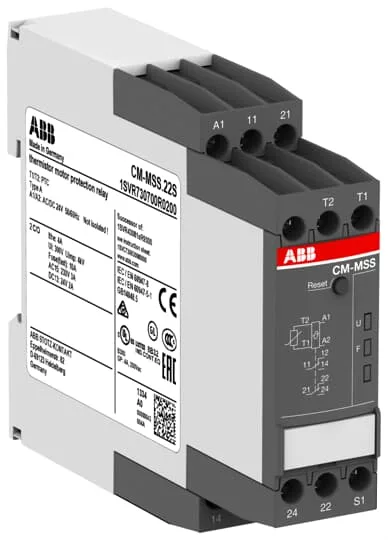

The CM-MSS.22S belongs to the CM-MSS thermistor motor protection relay range. It operates with a rated control supply voltage of 24 V AC/DC and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. It features one sensor circuit to monitor PTC temperature sensors and works according to the closed-circuit principle. The relay can be reset automatically, manually or remotely after the failure has been removed. A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers screw connection technology with double-chamber cage connection terminals.
Characteristics
EAN
4013614496714
Brand
ABB Stotz-Kontakt GmbH, ABB Stotz-Kontakt GmbH
Customs Tariff Number
85364900
Minimum Order Quantity
1 piece
Product Net Weight
0.132 kg
Package Level 1 Units
box 1 piece
Package Level 1 Depth / Length
30 mm
Package Level 1 Height
109 mm
Package Level 1 Width
97 mm
Package Level 1 Gross Weight
0.155 kg
Declaration of Conformity - CE
1SVD981006
RoHS Information
1SVD981006
RoHS Status
Following EU Directive 2011/65/EU
ETIM 7
EC002568 - Relay for thermistor protection (PTC)
Degree of Protection
Housing IP50/Terminals IP20
Instructions and Manuals
1SVC730630M0000
Product Net Width
22.5 mm
Product Net Height
85.6 mm
Product Net Depth / Length
103.7 mm
Rated Insulation Voltage (Ui)
Measuring Circuit / Output Circuit 300 V/Output Circuit 1 / Output Circuit 2 300 V/Supply Circuit / Output Circuit 300 V
Pollution Degree
3
Tightening Torque
0.6 ... 0.8 N·m
Wire Stripping Length
8 mm
Recommended Screw Driver
Pozidriv 1/4.5/0.8 x 4
Standards
CAN/CSA C22.2 No.14/EN 50581/IEC/EN 60947-5-1/IEC/EN 60947-8/UL 508
Contact Rating UL/CSA
B300
Tightening Torque UL/CSA
7.08 in·lb
Ambient Air Temperature
Operation -25 ... +60 °C/Storage -40 ... +85 °C
CB Certificate
CB_DK-40837-UL
CQC Certificate
CQC2005010303165479
DNV GL Certificate
DNVGL_TAE00003W4
EAC Certificate
EAC_RU_C-DE.ME77.B.01825
RMRS Certificate
RMRS_1740020250
Package Level 1 EAN
4013614496714
Object Classification Code
B
ETIM 5
EC002568 - Temperature monitor (motor protection)
ETIM 6
EC002568 - Relay for thermistor protection (PTC)
eClass
V11.0 : 27371503
E-Number (Finland)
2712502
E-Number (Sweden)
3860724
Electrical Durability
AC-12 100000 cycle
Mechanical Durability
30000000 cycle
Terminal Type
Screw Terminals
CCC Certificate
CCC_2005010303165479
Minimum Switching Capacity
24 V/10 mA
Mounting Position
Any
cULus Certificate
cULus508_20140912-E140448
Connecting Capacity
Flexible 1x 0.5 ... 2.5 mm²/Flexible 2x 0.5 ... 1.5 mm²/Rigid 1x 0.5 ... 4 mm²/Rigid 2x 0.5 ... 2.5 mm²
Overvoltage Category
III
Function
1 sensor circuit/Auto, manual or remote reset
Output
2 c/o (SPDT) contacts
Connecting Capacity UL/CSA
Flexible 1x 18-14 AWG/Flexible 2x 18-16 AWG/Rigid 1x 20-12 AWG/Rigid 2x 20-14 AWG
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715/TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
